dartOCM User Guide

Introduction

Ideagen's dartOCM is a browser-based order communications system, developed to meet the needs of pathology and other diagnostic departments in both primary and secondary care. dartOCM is compatible with all nationally recognised GP systems, providing real benefits across the range of requesting locations. The order communications system is interoperable and is proven throughout the NHS with millions of requests processed by thousands of clinicians every year.

dartOCM is a diagnosis/condition-based solution which provides a single requesting process which can span multiple pathology disciplines and other investigation requests. Pre-defined order sets, requests ensure the adoption of best practice and reduce ad-hoc requesting. Clinicians are no longer expected to create an individual request for each discipline/department, reducing duplication and saving a significant amount of time.

All key clinical information is captured electronically via highly configurable, dynamic request forms. Request information is transmitted directly to the receiving department, reducing or eliminating booking in time, and preventing transcription errors.

Demand management support allows tests or investigations to be restricted to specific repeat intervals, or based on other criteria such as age or gender. Orders can also be prevented by configurable rules which can help to identify inappropriate requests contraindicated by the clinical information entered, for example, through the completion of an MRI safety declaration built into the request form, or a CT request with contrast, without a recent creatinine result. These features can prevent requests being rejected at vetting and help to reduce clinical risk.

Authorised users have the ability to view test results and investigations that have been requested by other clinicians across both primary and secondary care for improved patient care. Numeric results can be reviewed in both cumulative and graphical views to assist with identifying clinically significant trends. Users can receive notifications of new or abnormal results via email and be prompted to sign off results to ensure any follow up action is carried out.

Accessing dartOCM

Logging In

dartOCM can be accessed in different ways depending on the way it is implemented, and local instructions should be provided.

For GP requesting, the patient will first be selected from the practice system such as EMIS, Vision or SystmOne. Ideagen OCM will then be launched directly, or via LabelTrace in the case of SystmOne.

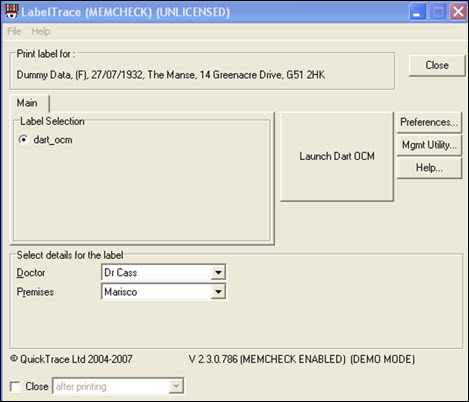

In the LabelTrace software, all the relevant patient personal details will be extracted from the GP system. Clicking on the Launch Dart OCM button will automatically authenticate the user and log them into dartOCM. The new order screen should then be displayed.

Logging Out

To log out of the system, click the button on the user banner.

Navigation

User Banner

The user banner displays the current logged in user and their default location. If the user is linked to more than one location a + button will be displayed. Clicking this button will allow the user to change their default location.

The quick search facility can be used to search for a patient by their NHS number.

Changing Default Location

The default location is used to pre-populate the ordering screen and filter other screens such as Reception and Home.

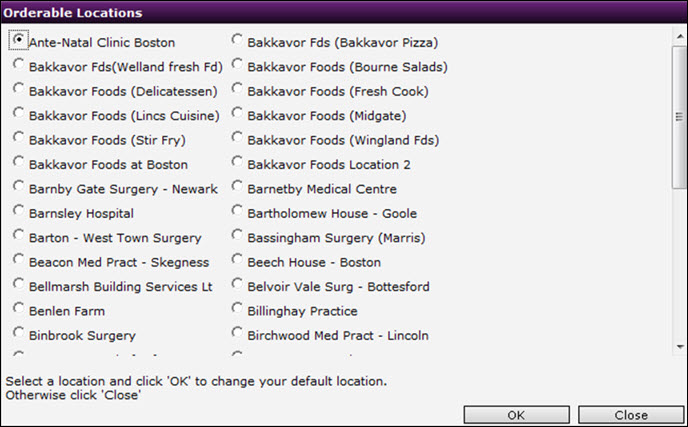

If the logged in user is linked to more than one location the + icon will be displayed in the top bar. Click this icon to change the default location.

All locations associated with the logged in user will be displayed. Select a new location and click OK to update the default location or Cancel to go back without changing.

Menu Bar

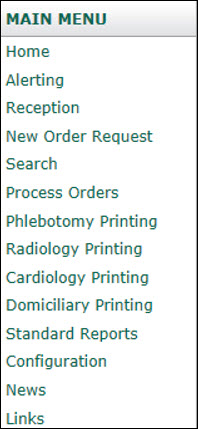

Main Menu

Home - gives a breakdown of the number of requests made from a user’s location.

Alerting - provides a red, amber, green rated worklist of results awaiting sign off / acknowledgement.

Reception - provides the ability to display information about the number of requests made by date, discipline/department, requesting location, requestor, and current status.

New Order Request - allows the user to make a new electronic request.

Finish Request - not seen by default. If a user starts a request and navigates away from the request screen without saving, the Finish Request item appears. Clicking the item takes the user back to the request for completion. Clicking the ‘Bin’ icon deletes the unsaved request.

Search - allows the user to search for a patient or request using a variety of search criteria.

Process Order - allows carry out process workflow tasks such as print forms or labels, or mark requests as complete. It can be accessed immediately following the creation of a new order, or by searching for an existing order.

Phlebotomy Printing - print queue listing outstanding phlebotomy requests.

Radiology Printing - print queue listing outstanding radiology requests.

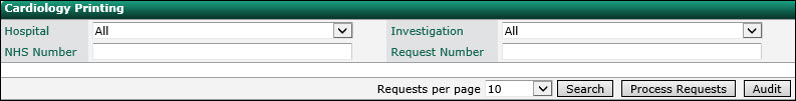

Cardiology Printing - print queue listing outstanding cardiology requests.

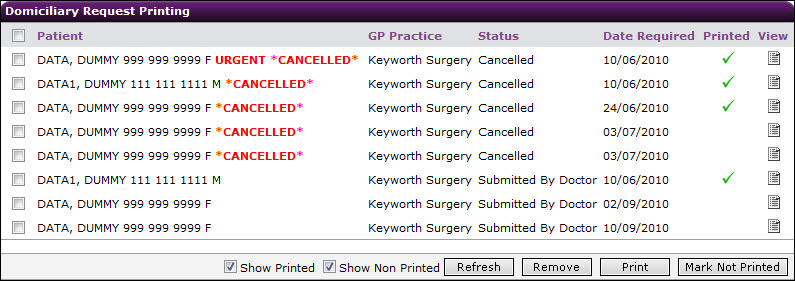

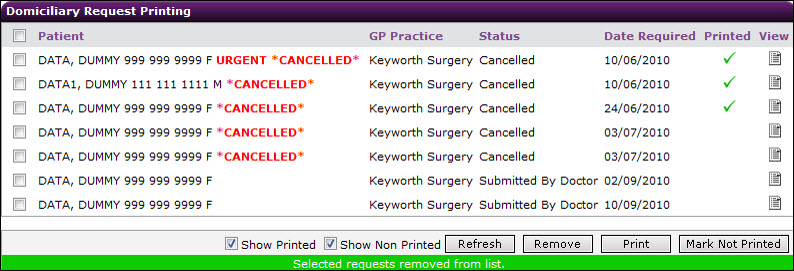

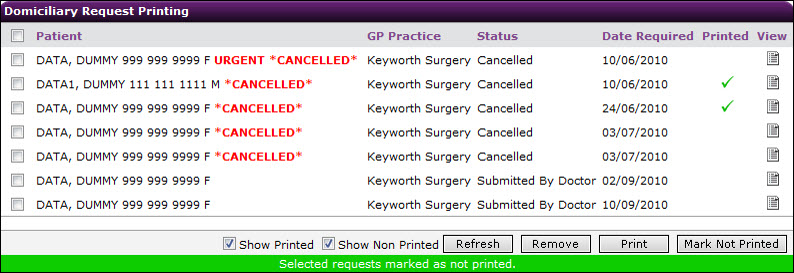

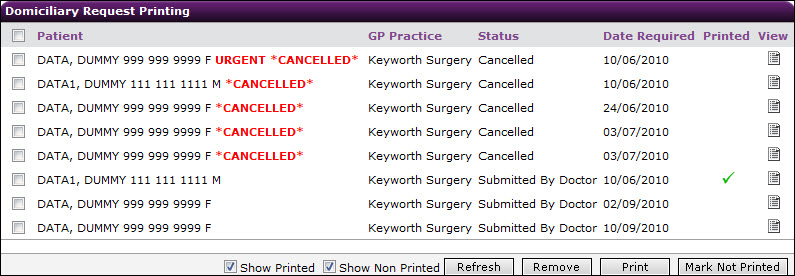

Domiciliary Printing - print queue listing outstanding domiciliary requests.

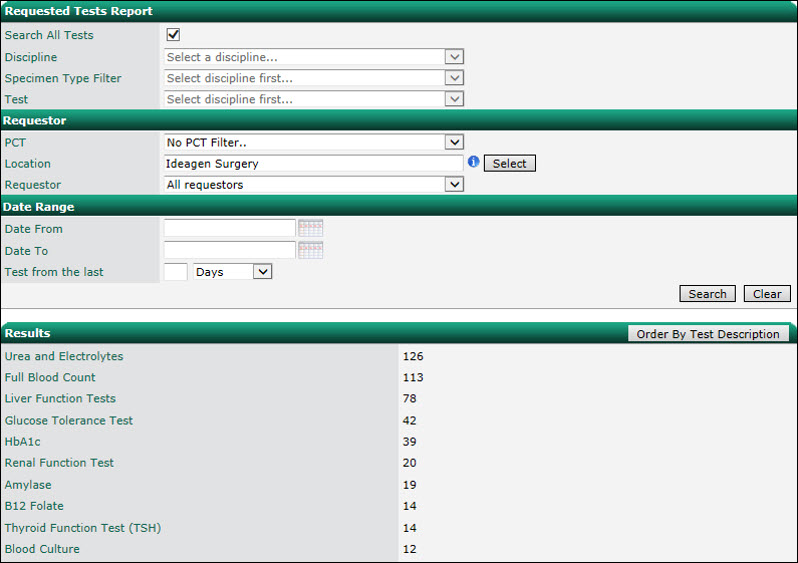

Standard Reports - allows the user to quickly run some in built reports.

Configuration - this link takes you to a configuration section where you can customise Ideagen OCM with settings that only apply to your login or computer.

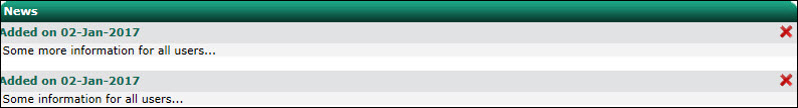

News - news items added by system administrators to inform users of important information regarding dartOCM. When new news items are available an icon will be shown next to the news link which is cleared once the news item has been viewed.

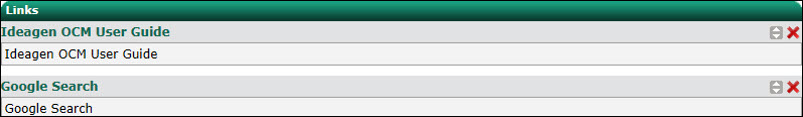

Links - links to useful websites that have be added by system administrators.

Actions

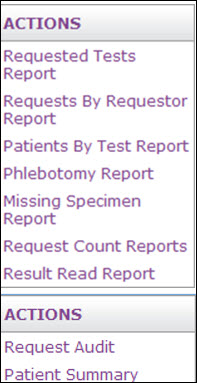

This is a dynamic menu that changes depending on the context of the current page. For example, the image above displays the menu options available when you click on the Standard Reports menu item.

On certain screens when viewing a patient, a ‘Patient Summary’ link will be shown. Clicking this link will take you to the patients main record.

My Patients



This is a self-maintained list that provides quick access to patients’ records that you regularly provide care for.

On clicking on a patient name, you will be taken to a screen summarising all the requests that have been made for this patient along with a list of all results that have been received for this patient.

Creating a New Order

dartOCM allows you to create a single order across multiple pathology disciplines and diagnostic investigation departments. Once submitted, the order is automatically separated into individual requests for each discipline/department for processing.

If dartOCM has been launched from a separate clinical system, such as a GP practice system, clinical portal or EPR, the patient details, Requesting Clinician and Location should have been pre-populated. If not, enter the patients NHS Number or Hospital Number and click Auto Fill to search for an existing patient record. If an existing record is not found, full patient demographic information must be entered to continue.

To create a new order when dartOCM is being accessed directly, select New Order Request from the Main Menu.

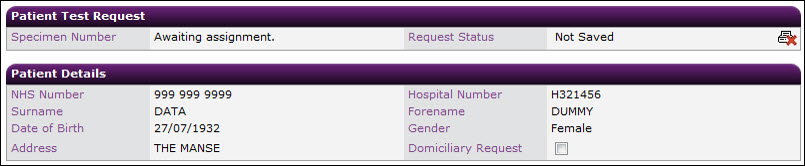

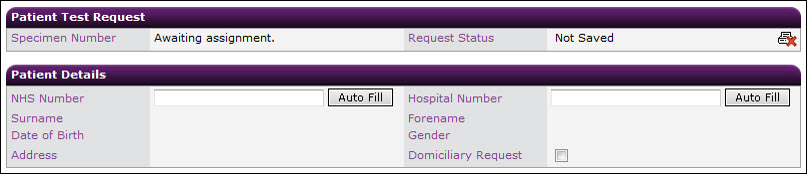

Entering Patient Demographics

dartOCM can be configured to restrict the editing of patient demographic information. If a patient originated from a separate clinical system such as a GP practice system, clinical portal or EPR, the patient will not be editable through dartOCM. If a patient was created through dartOCM, the patient will be editable.

If dartOCM has been launched from a separate clinical system, such as a GP practice system, clinical portal or EPR, the ordering screen will be loaded with patient details, Requesting Clinician and Location pre-populated with patient demographic fields being displayed as read-only. When the request is saved, your user details will be flagged as originating from a clinical system.

If you are creating a new order directly within dartOCM, the NHS Number may be the only field that is editable.

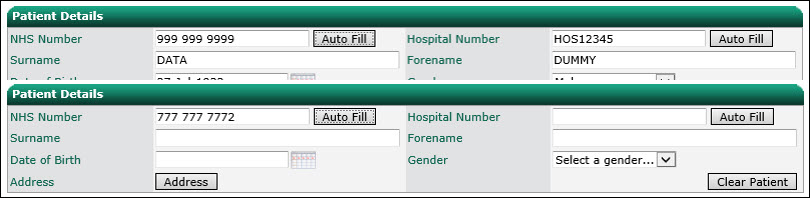

To populate the patient details, you must first enter an NHS Number and click Auto Fill. If the patient is flagged as originating from a clinical system, the patient demographic information will be displayed as read-only.

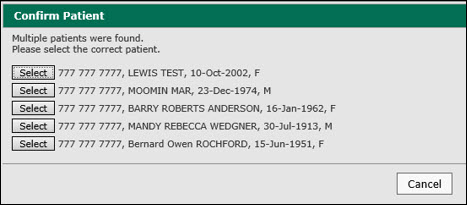

If the NHS or Hospital number matches more than one patient, the user will be shown all the matching patients and prompted to select the one they want.

If you are permitted to add a new patient, add the patient demographic information and the new patient will be added when the order is submitted.

If the NHS number is for a patient not flagged as originating from a clinical system, the patient demographic information will be editable to allow you to make changes to the patient details held within dartOCM.

If the patient is not present in dartOCM the form will display textboxes for the manual entry of patient demographics.

Note – when manually entering dates into fields in dartOCM, it is best practice to enter the year as 4 digits. If you enter a 2-digit year between that is valid for the current century, for example 00 to 17 in 2017, it will be automatically prefixed with “20”. If you enter a year not valid for the current century, for example, 18 to 99 in 2017, it will be automatically prefixed with “19”.

If you update a patient’s demographic information in the clinical system and that patient already exists in dartOCM, the patient demographics are updated in dartOCM when you next create a request.

If you make a request via a clinical system and the patient matches a patient manually entered into dartOCM, the manually entered patient will be updated with the details from the clinical system and flagged as such. The initially manually added patient will no longer be editable via dartOCM.

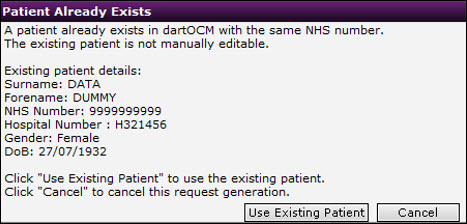

If you manually add patient demographics which match a patient already known to dartOCM two things may happen:

1. If the existing patient is not flagged as originating from a clinical system the existing patient is updated with the new details.

2. If the existing patient is flagged as originating from a clinical system, you will be prompted with a warning. You will be given the option to load the patient demographics from the existing patient to be used in the request. If you choose not to load the existing patient demographics, the request will not be saved.

Selecting Tests/Investigations

The quickest way to create a new order is to select one or more of the pre-defined favourite test order sets, or an investigation-based order set. Full lists of test/investigation are available via the different discipline/department tabs at the top of the order screen.

Note – all tabs can be re-ordered by dragging and dropping into place.

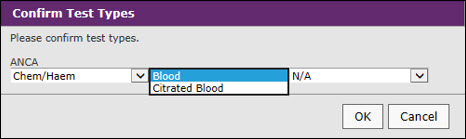

Test Type Confirmation

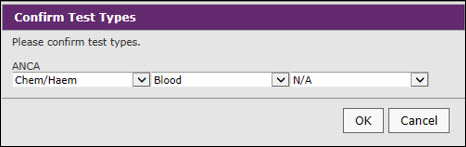

Tests that require a sample can be associated with more than one discipline, more than one specimen type and potentially more than one specimen site if enabled. If a test has more than one association, it must be selected before the test can be requested. When you select a test that has more than one association, the system will prompt you to select which discipline, specimen type, or specimen site they require.

In the above example, the test ‘ANCA’ has been selected and the test type confirmation dialogue has appeared. This is because this test is linked to two different specimen types, ‘Blood’ and ‘Citrated Blood’.

Once the desired discipline, specimen type, or specimen site have been confirmed, click OK to continue the test selection. Click Cancel to cancel the selection of the test.

Favourite Tests

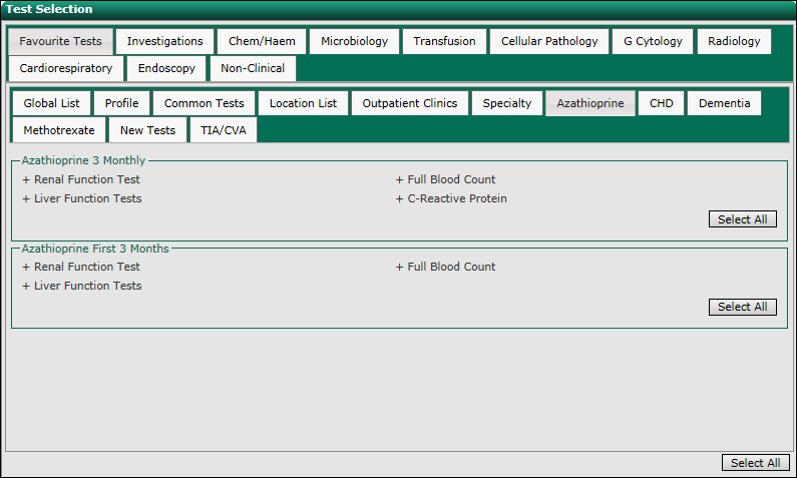

Favourite tests allow the quick selection of pre-defined, regularly used tests. Ideagen OCM supports the configuration of the types of favourite tests:

• Global – configured by a system administrator, available to all system users

• Location – configured by a system administrator, available to all users within an individual location

• Personal – configured by an individual user with appropriate permissions

All favourite tests will be displayed in one or more tabs below the main tab list. Within an individual tab, there will be one or more order sets. To select all tests/investigations in a single order set, click Select All within the order set box. To select all tests/investigations across all order sets, click Select All at the bottom right hand corner of the test selection panel.

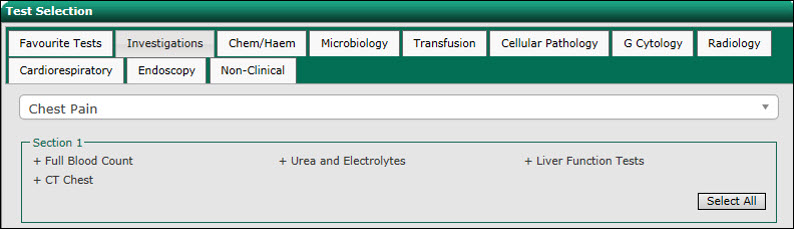

Investigation Based Order Sets

Investigation based order sets work in a similar way to favourite tests and are also pre-defined by a system administrator. First select a presenting complaint/diagnosis from the drop-down list. One or more order sets with then be displayed below the drop-down. To select all tests/investigations in a single order set, click Select All within the order set box. To select all tests/investigations across all order sets, click Select All at the bottom right hand corner of the test selection panel.

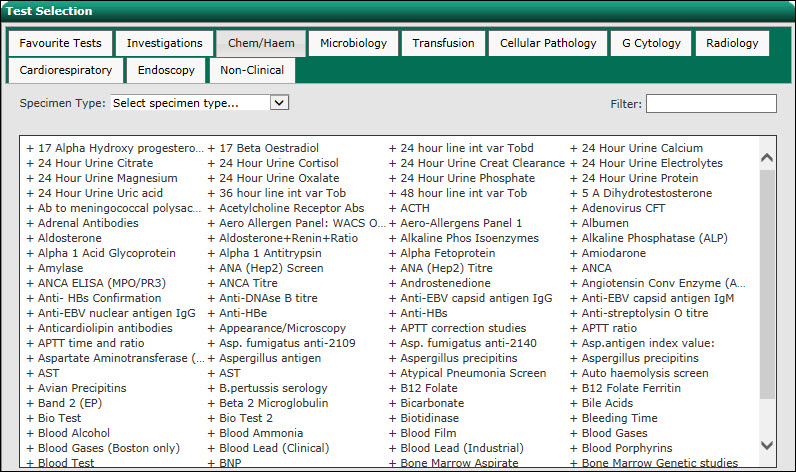

Discipline/Department Based Test Lists

It is possible to add individual tests/investigations to an order, including adding tests/investigations after selecting one or more order sets from the favourite or investigation tabs.

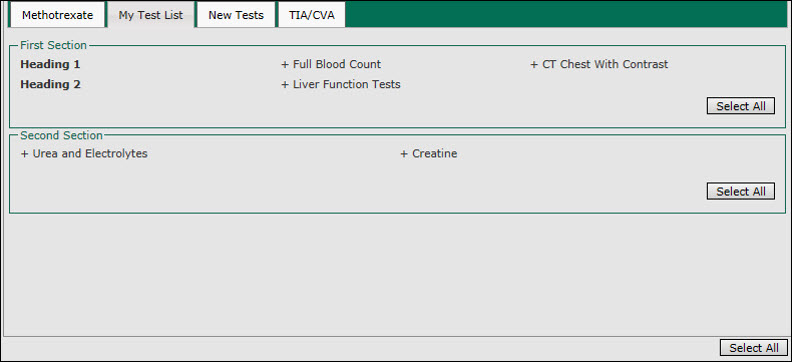

Select the appropriate discipline/department tab. Depending on the configuration of the discipline/department, you may be presented with various drop-down boxes to filter based on specimen type, specimen site and examination type. A free text filter is also displayed to allow you to type all or part of a test/investigation name to find it in the list.

Select the test(s)/investigation(s) you want to add to the order.

Order Basket

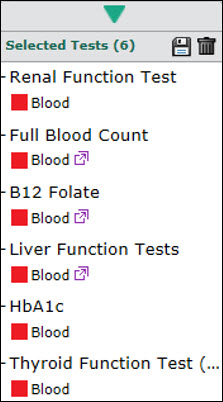

Tests/investigations selected will be added to your order basket.

To view additional details about the test/investigation, such as discipline, sample type and last test date, hover your cursor over the test/investigation name.

To access additional information about the test/investigation, click the hyperlink button . Note – links must have been configured by a system administrator.

For Pathology tests, a coloured square may be displayed to denote the colour of the tube top that should be used when collecting the sample.

To remove an individual test/investigation from the list, click the name and click OK on the confirmation box.

To remove all tests/investigations from the basket, click the button.

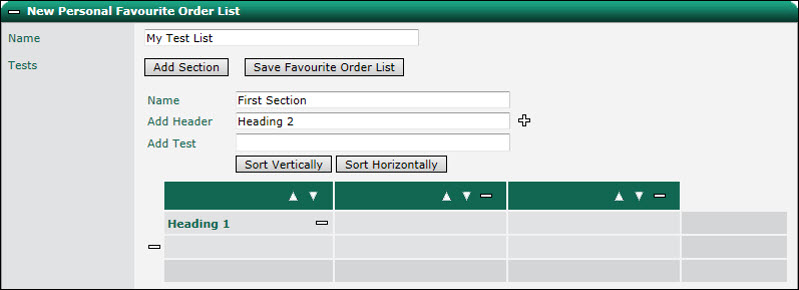

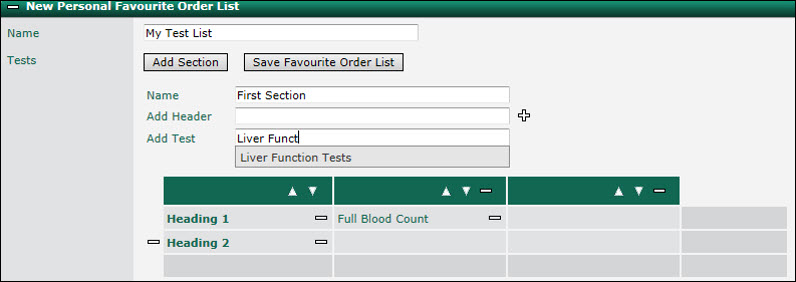

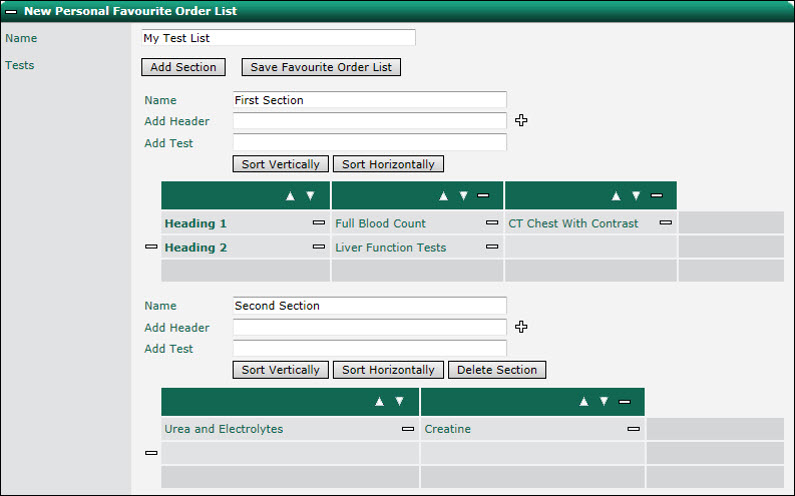

To save all tests/investigations in the basket as a new personal favourite test list, click the button.

To hide the order basket, click the toggle button.

Order Questions

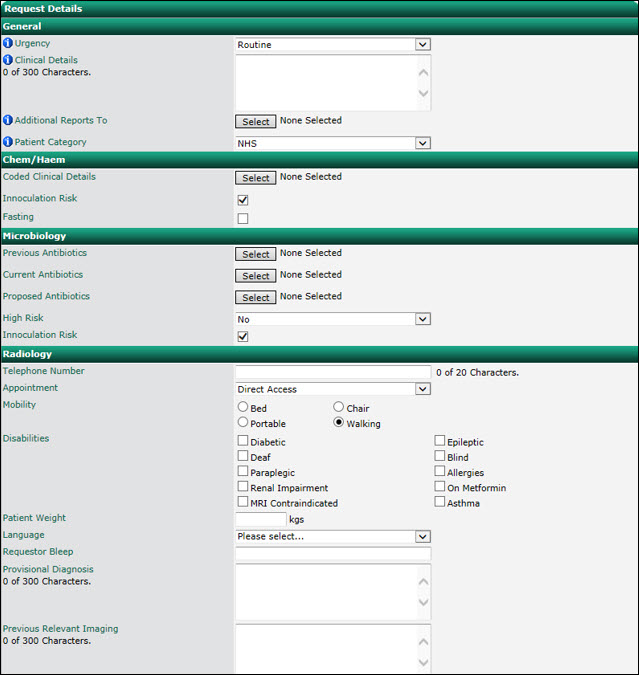

As tests/investigations are added to the order, relevant questions will appear at the bottom of the screen. This may be a combination of question types, some of which may have follow up questions, some may be mandatory, and providing a particular answer to a question may prevent you from completing the order as it may be inappropriate or pose a patient safety risk. For example, making a request for an MRI and answering “Yes” to a question relating to the presence of a pace maker. The actual questions displayed will be dependent on local configuration. An example set of questions is shown below.

Note – if you navigate away from the ordering screen, your draft order will be preserved. To return to the order, click Finish Order from the main menu, or click the button to delete the order.

Submitting an Order

Once the order is complete, click the Save and Process button to complete the request and go to the processing steps or click the Save button to save the request for later, without printing or processing.

Note – these buttons may have different labels depending on local configuration.

Ordering Rules

dartOCM allows system administrators to configure various rules to prevent inappropriate or excessive requests and to provide guidance. These include:

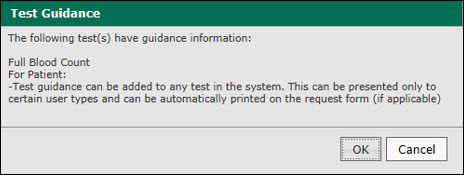

Test Guidance - free text information that may be useful for the requestor. Displayed when the associated test/investigation is added to an order.

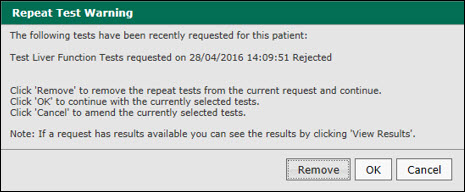

Repeat Test Warnings - minimum intervals between tests to prevent excessive requesting.

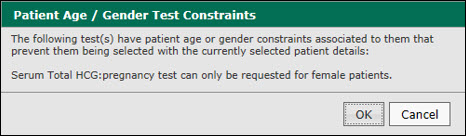

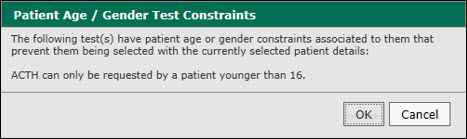

Age/Gender Constraints - age and gender constraints to prevent inappropriate requests.

Mutually Exclusive Tests - constraints to prevent two similar tests from being added to the same order.

Linked Tests - additional test(s) automatically added on the selection of an associated test.

Processing Orders

The Process Orders option in the Main Menu may be used at various stages following the submitting of a new order, depending on the process/workflow configured for a particular diagnostic discipline/department.

Due to the flexibility in the configuration of the process/workflows, the options available on this screen will vary between implementations, and between diagnostic disciplines/departments.

The Process Orders screen may be accessed immediately after submitting an order if the Save and Process button is pressed on the Order Screen.

Note – this button may have a different label depending on local configuration.

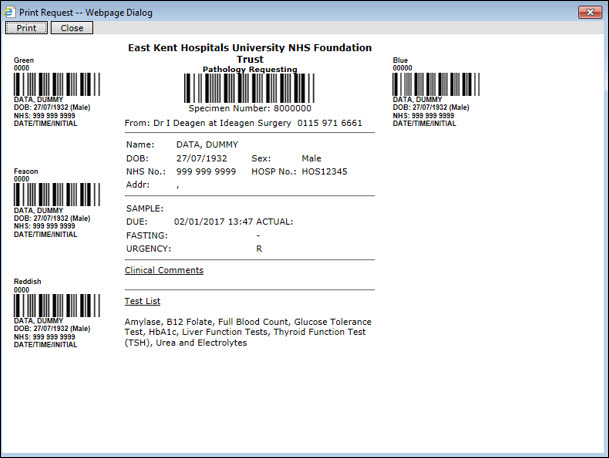

Printing Forms and Labels

dartOCM process workflows can be configured, by diagnostic discipline/department, to be fully paperless, or produce a variety of printed media such as pre-cut label sheets, appointment cards or thermal barcode labels.

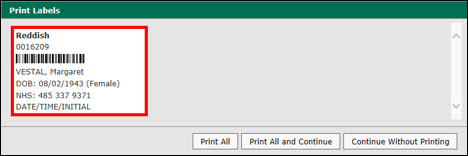

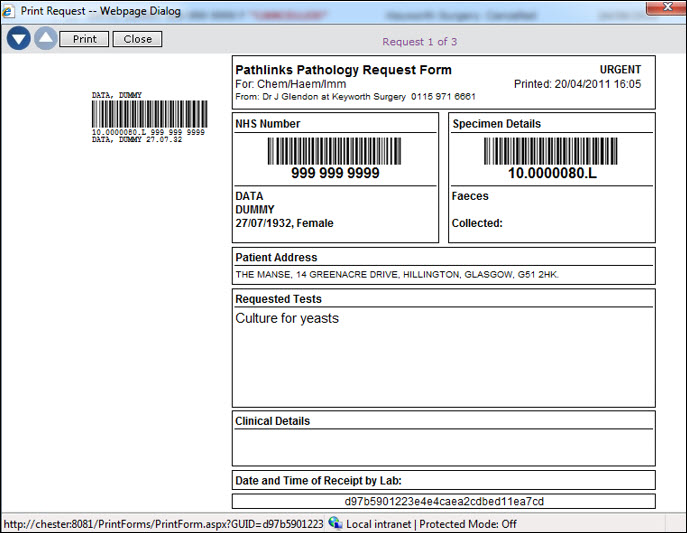

Forms and labels will be automatically displayed to be printed for all request types that have been configured to output printed media.

If configured as part of the process workflow, it is also possible to return to the Process Orders screen to print additional labels if required.

Note – depending on the status of the request, some options may not be available.

Patient & Requests Search

Quick Search

The Quick Search function is located in the top right hand of the screen and is always available regardless of the screen the user may be using. Here the user can enter the NHS Number, surname or the allocated specimen number to quickly find the patient or request details.

Note – Quick Search may not be available if Ideagen OCM has been launched from another system in patient context.

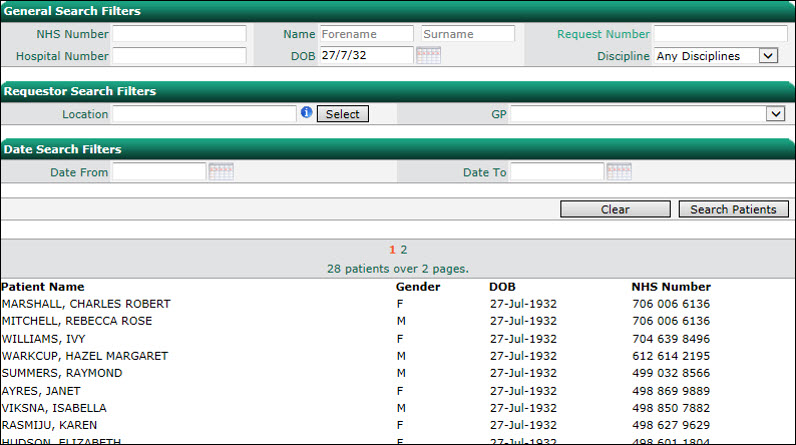

Main Search

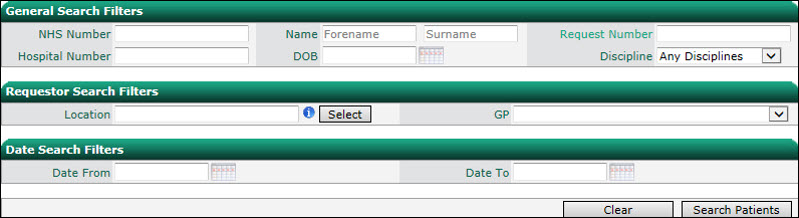

Click the Search link in the Main Menu. Enter any combination of the available search criteria and click Search Patients.

Note - When searching for a specimen number all the other fields will be ignored.

Search Results

If there are matching search results, they will be listed in a table below the search selection criteria.

Click on a patient to open their main record, listing all results and outstanding requests.

When searching by specimen number, the system will first attempt to find any matching requests made via dartOCM. If only one result is returned users will be taken straight to the request screen or if results are available straight to the result screen. If more than one result is returned, a list of results will be displayed.

When no requests can be found, the system will search through the available results. If only one result is returned users will be taken straight to the result screen. If more than one result is returned, a list will be displayed.

Click on a result to view the details.

Note – it is possible to enter a wildcard when searching by patient name, E.G. “jack*” will return Jackson, Jacklin etc.

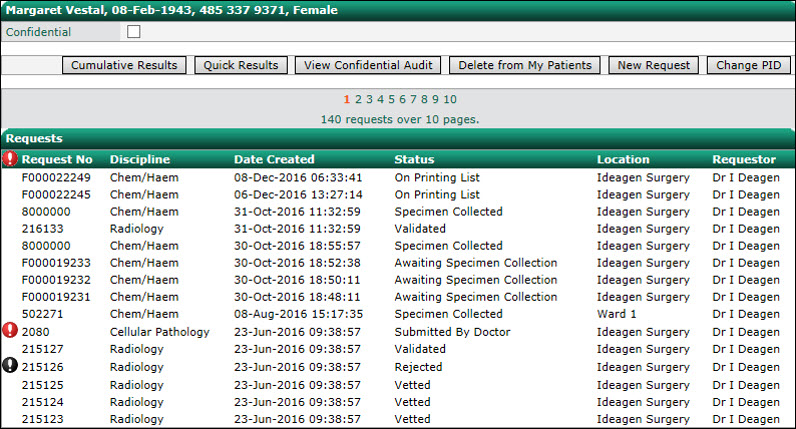

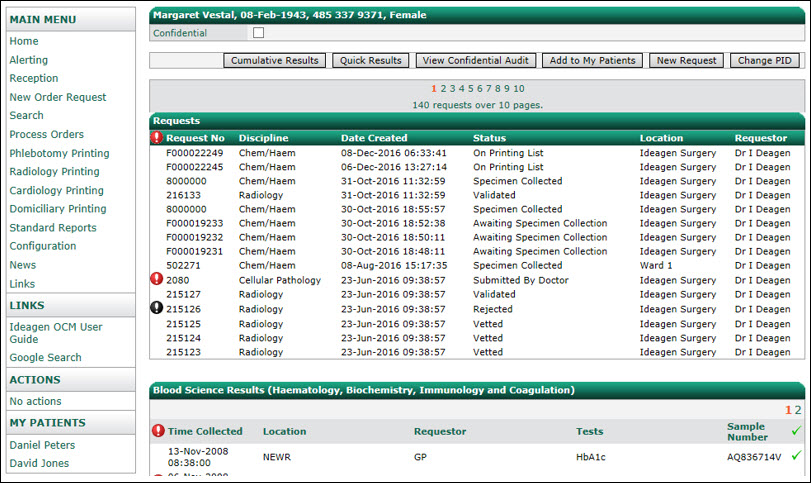

Patient Record

After selecting a patient from search results or favourite patients, the main patient record screen will be displayed.

The top of the patient record screen displays all the electronic requests that have been made for the selected patient via dartOCM. Click on a row to view the original request.

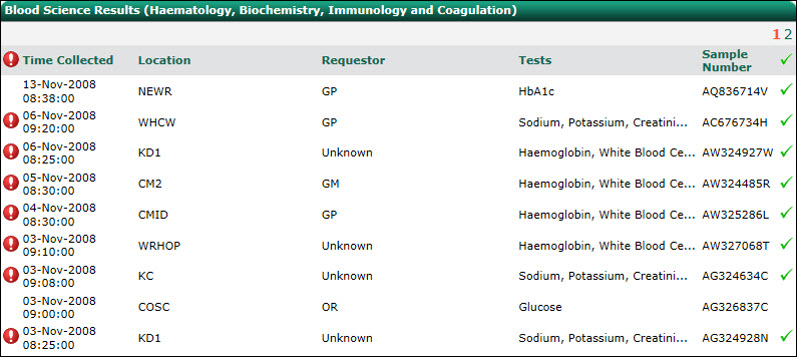

Below the outstanding requests list, all results/reports for the selected patients are listed, grouped by requesting discipline/department. Click on a row to view the associated results/report.

Confidential Patient Records

To mark a patient record as confidential, click the Confidential tick box at the top of the main patient record screen. To remove the confidential status, untick the box.

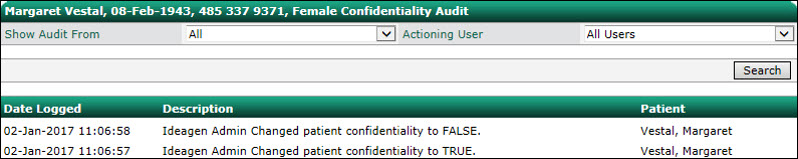

To view the audit trail of changes to the confidential status, click the View Confidential Audit button and configure the filters as required.

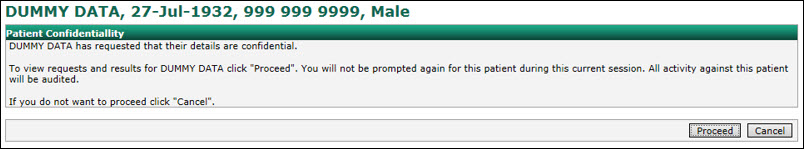

When you attempt to open a patient record marked as confidential, you will be prompted to confirm that you want to proceed to view the confidential record.

Quick Results

To view Quick Results for Blood Sciences, click the Quick Results button at the top of the main patient record screen. Clicking on a test in the pop up will display the results history in graphical format.

Cumulative Results

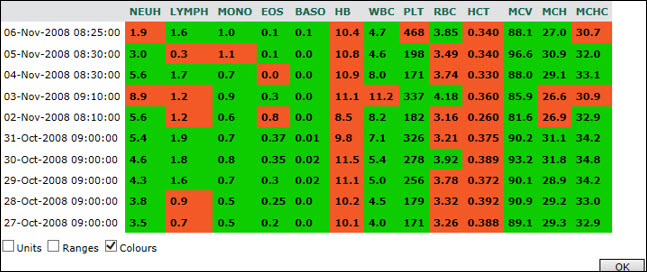

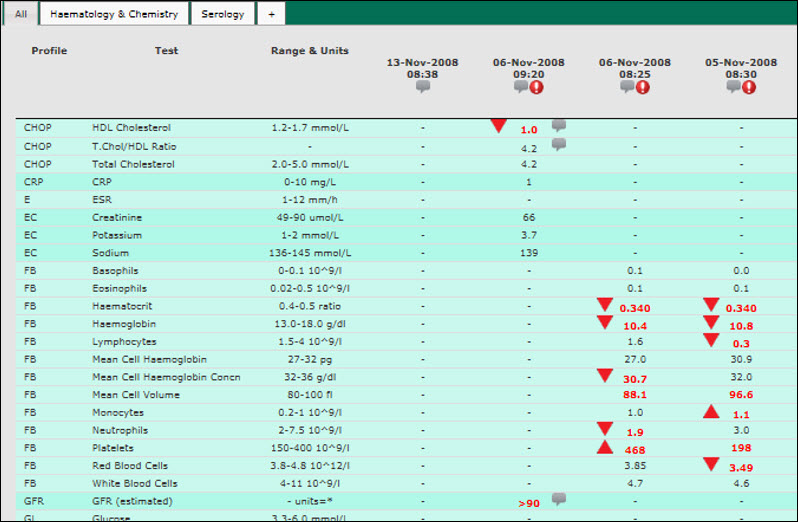

Click the Cumulative Results button to view numeric results in tabular and chart format.

A table containing all available numeric results will be displayed.

The first three columns display profile code, test name range/units. The remaining columns display results.

Column headings include the date/time of collection. Hover over the date/time to see the requesting clinician and location, and the date/time the results were authorised. A icon will be displayed if comments have been added within dartOCM. Hover over to see the comments. A icon will be displayed if one or more of the individual test results are abnormal.

Within the results, abnormal test results are highlighted in red with a arrow denoting higher or lower than laboratory range. A icon will be displayed if there are laboratory comments against a result. Hover over to see the comments.

Click on the column headings for profile or test to sort by that column.

Click on the column heading for a set of results to go to the main results screen.

Results displayed in the table can be filtered using the boxes at the top of the screen. Enter one or more profiles to include/exclude and/or enter a date range. Click Refresh to refresh the results in the table.

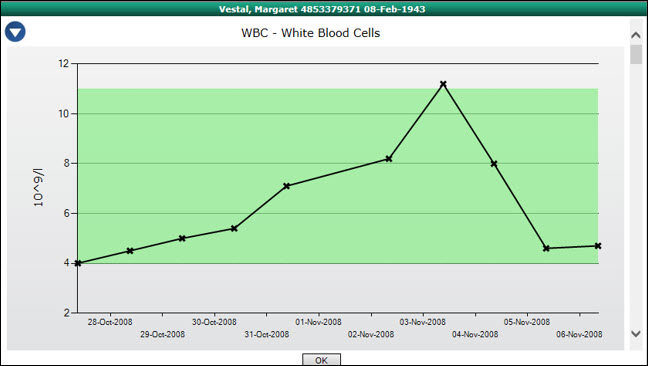

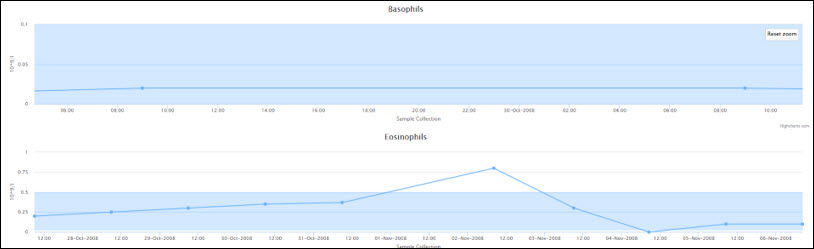

To view results in graphical format, select one or more tests using the check boxes on the right-hand side of the table, or click on a profile code to select the whole profile and click the Show Charts button.

Charts will be displayed vertically down the screen, with date/times aligned.

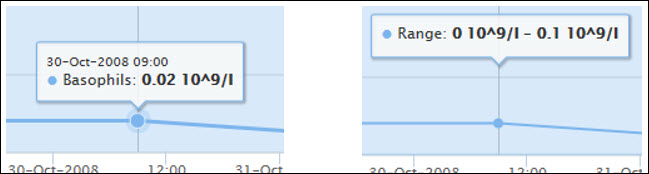

Hover over a data point to view the exact date/time and result. Hover over the laboratory range to see the details of the limits.

Click, drag and select an area of the chart to zoom in. Click Reset Zoom to zoom back out.

To return to the patient record at any time, click the Patient Summary button in the top right-hand corner of the screen.

Viewing Results/Reports

Results/reports can be accessed from the main patient record screen, or via search screen. The layout of the results may vary between discipline/department.

On each result screen is a New Request button. Click this to create a new request for the selected patient.

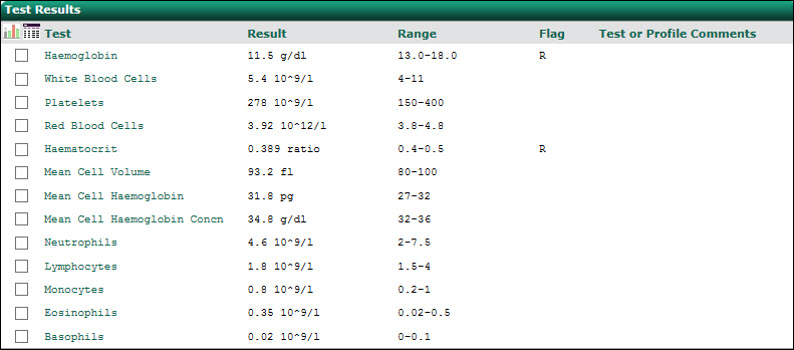

Numeric Pathology Results

Numeric results are displayed along with the minimum and maximum ranges for each test, flags, and any comments added by the laboratory.

To display results in a quick tabular format, select one or more tests and click the button.

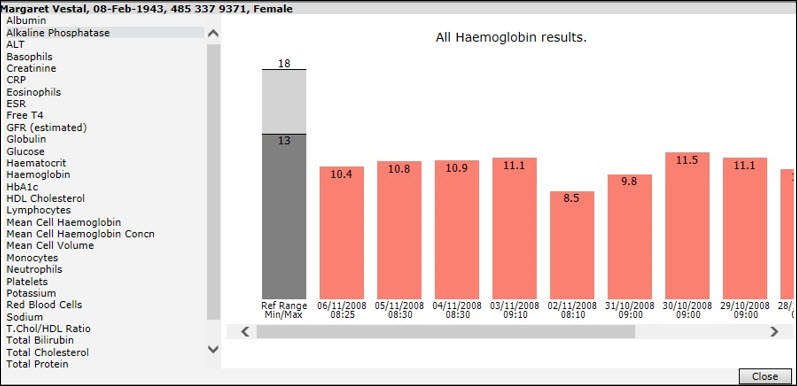

To display results in a quick graphical format, select one or more tests test and click the  button. Scroll down or click the button or scroll down to view more charts.

Textual Results/Reports

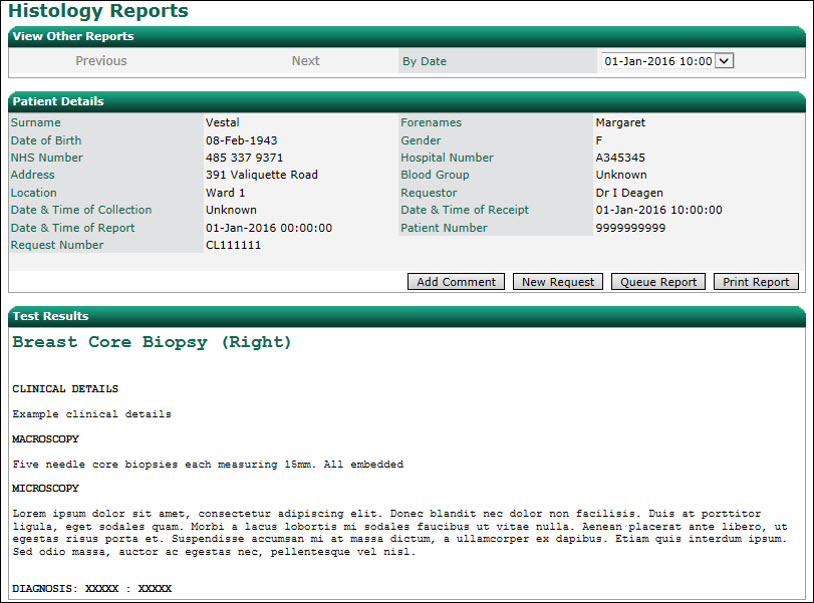

Textual reports, such as Radiology and Histology are displayed in the format/layout provided by the departmental system the results/report originated from.

Result/Report Sign Off

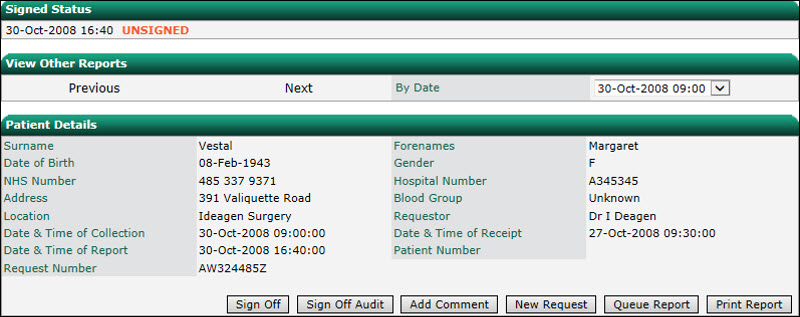

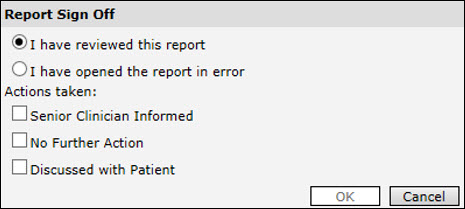

If results sign off is enabled for a discipline/department, when viewing results/reports for a patient, it is possible to sign them off by clicking the Sign Off button and entering one or more follow up actions. If you try to navigate away from the results/report, the system will force you to either sign off the results or notify the system that the results were opened in error. The system record all sign off actions in the audit trail which is available by clicking the Sign Off Audit button.

Note – you must have appropriate permissions to view the sign off audit.

Exporting Results to a Third Party Clinical System

If supported, results/reports can be marked for export back to the GP clinical system. To export results, click the Queue Report button. A confirmation box will display before queuing the report for transmission. Click OK to continue or Cancel to go back.

Home

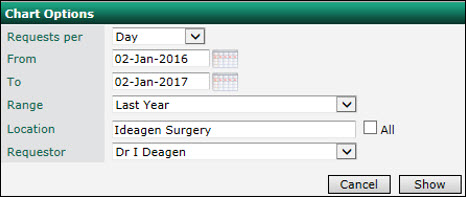

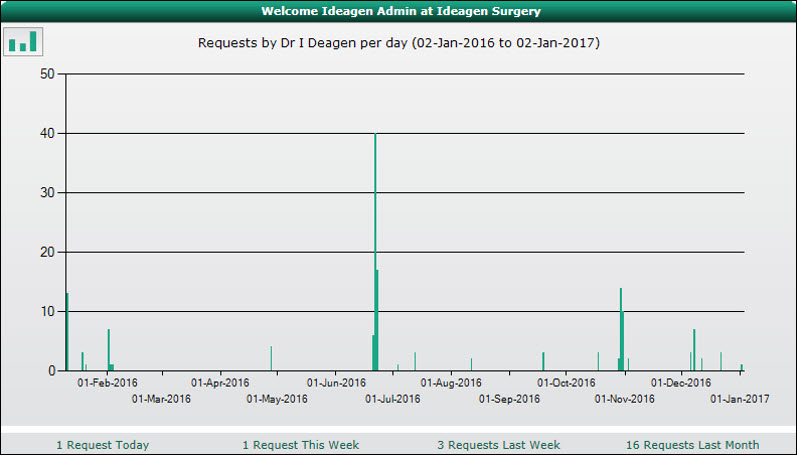

The home screen gives a breakdown of the number of requests made by a particular user or location.

Hover over or click the button to update the filter settings.

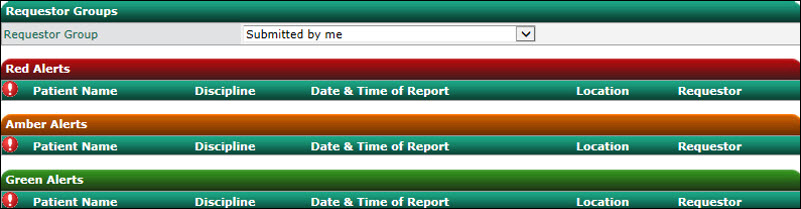

Alerting

The alerting screen provides a red, amber, green rated worklist of results awaiting sign off/ acknowledgement.

Select a filter from the drop down list at the top of the screen:

Requested by me – results where you were the named Requestor on the order

Submitted by me – results for requests that you completed and submitted

Requestor groups – results where the named requestor belongs to a pre-defined group/team displayed in the drop-down list

Results are displayed in three groups:

Green – signed off results, held in the list for a pre-configured number of days

Amber – new results

Red – results that have not been signed off within a pre-configured number of days

Reception

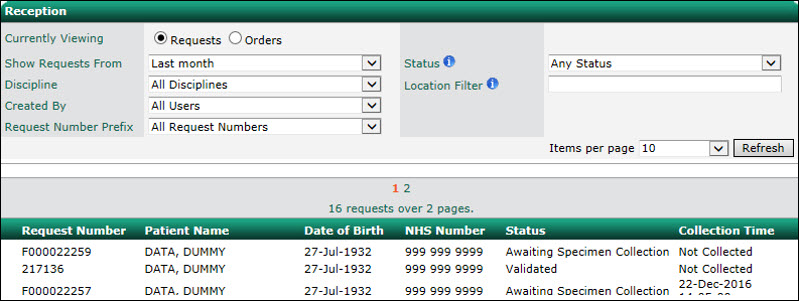

The reception screen provides the ability to display information about the number of requests made by date, discipline/department, requesting location, requestor and current status.

Select Reception from the Main Menu. Select the filters as required and click Refresh.

Note – the filters available will be different when listing Requests and Orders.

Printing Queues

Printing queues allow requests to be held for printing at a later date or in another location, for example, centralised printing of Radiology requests within the department, or adding pathology requests to a phlebotomy queue to allow the phlebotomist to print a form or labels when they collect samples from the patient.

There are currently four queues available. Requests will only appear on these queues if configured to do so by a system administrator, based on particular triggers built into the process workflow, for example, an “Add to phlebotomy list” action.

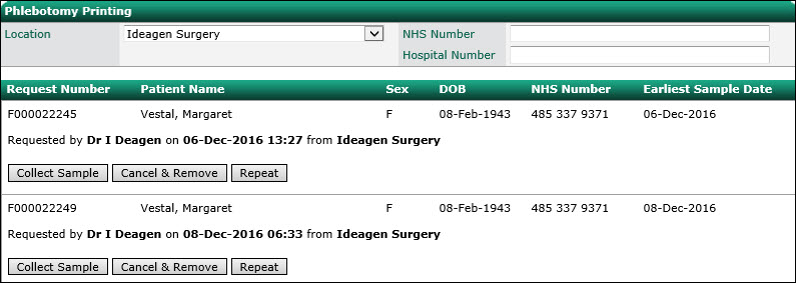

Phlebotomy Printing

By default, all outstanding phlebotomy requests for the selected location will be displayed.

Select a different location or enter an NHS number or hospital number and click Search to filter requests.

The options available will be dependent on the process workflow configured by a system administrator. This could include a combination of option buttons, questions or automatic processing steps. To process a single request, select the appropriate option for that request, for example, “Collect Sample” and click the Process Requests button. To process multiple requests at once, select the appropriate option for each request and click the Process Requests button. The options available for processed requests will change and may show the new status, for example, “Sample Collected”.

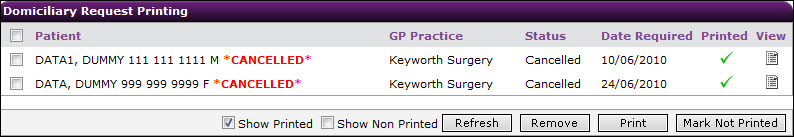

If the process workflow has been configured to audit recently printed requests, they can be viewed by clicking the Audit button.

Radiology Printing

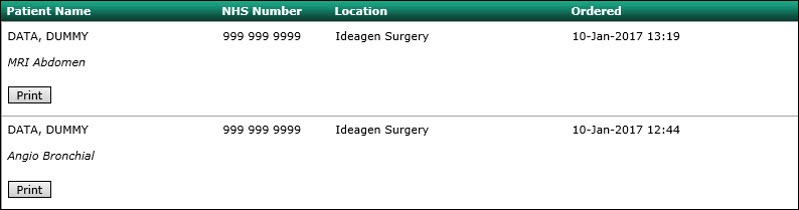

By default, all outstanding Radiology requests will be displayed.

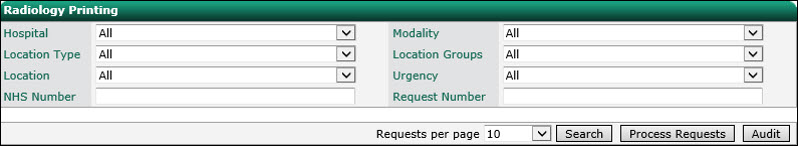

Select options from the hospital, location type, location, modality, location group and or Urgency drop down lists or enter an NHS number or request number and click Search to filter requests.

Requests can be sorted by patient name, NHS number, location and order date/time clicking the column headers.

The options available will be dependent on the process workflow configured by a system administrator. This could include a combination of option buttons, questions or automatic processing steps. To process a single request, select the appropriate option for that request, for example, “Print” and click the Process Requests button. To process multiple requests at once, select the appropriate option for each request and click the Process Requests button. The options available for processed requests will change and may show the new status, for example, “Printed”.

If the process workflow has been configured to audit recently printed requests, they can be viewed by clicking the Audit button.

Cardiology Printing

By default, all outstanding Cardiology requests will be displayed.

Select options from the hospital and/or investigation drop down lists or enter an NHS number or request number and click Search to filter requests.

Requests can be sorted by request number, patient name, DOB, NHS number and collection date by clicking the column headers.

The options available will be dependent on the process workflow configured by a system administrator. This could include a combination of option buttons, questions or automatic processing steps. To process a single request, select the appropriate option for that request, for example, “Print” and click the Process Requests button. To process multiple requests at once, select the appropriate option for each request and click the Process Requests button. The options available for processed requests will change and may show the new status, for example, “Printed”.

Domiciliary Printing

Configured locations can make domiciliary requests via dartOCM. Unlike a normal request the requestor does not print the request form, but simply saves the request. The laboratory staff print the request form via the Domiciliary Lab Printing screen.

Details

The Domiciliary Lab Printing screen is accessed via the right-hand menu Standard Reports -> Domiciliary Lab Printing.

This screen can be set as a home page, so users can be sent to this screen as soon as they log in.

Requests are ordered by urgency and then by Date Required. Requests can be selected individually via the check box to the left or all requests on the current page can be selected or de-selected via the checkbox on the left of the table header.

You can only work with the requests on the current page. If you select requests on one page, change to another page, select more requests, clicking an action button will only action the selected requests on the current page, not the selected requests on the previous page.

To print requests, select them and click Print. A new screen will open, and the request forms loaded.

While loading, the Print button will be disabled. Once all the requests are loaded the Print button will become enabled. To cancel printing, click Cancel. To proceed with printing all the requests click Print. All the requests will be printed to A4 paper, one request per page.

Once printed, the requests will be marked as such in the “Domiciliary Lab Printing” screen.

To remove requests that have been actioned, select them and click Remove. The selected requests will no longer appear in the list.

Requests can have their printed status removed. Select the requests to change and click Mark Not Printed.

The list can be filtered by printed status using the two check boxes at the bottom. Deselect one of the check boxes and click Refresh to show all Printed or All Non-Printed requests.

Clicking the View Request icon at the end of a row will display the full request details.

Standard Reports

Ideagen OCM includes several pre-defined reports that allow authorised users to run ad-hoc searches for data. To access reports, select Standard Reports from the Main Menu, and select the desired report from the Action menu.

Enter the filter criteria and click Search.

Note – it is recommended that a dedicated reporting tool such as Crystal Reports is used for detailed reporting.

Configuration

Select Configuration from the Main Menu to customise dartOCM with settings that only apply to your login or computer.

On first selecting Configuration, you can configure your default home page, and select whether to display print previews.

Favourite Test/Investigation Lists

Favourite tests allow the quick selection of pre-defined, regularly used tests. dartOCM supports the configuration of the types of favourite tests:

Global – configured by a system administrator, available to all system users

Location – configured by a system administrator, available to all users within an individual location

Personal – configured by an individual user with appropriate permissions

To configure user favourite tests, from the configuration screen, click Test Lists and then My Order Lists.

Order lists can be separated into sections, so you can choose whether to add all tests in the order list, or only tests within a particular section.

Enter a name for the list and update the name for the first section.

To add a header label, enter text into the header field and click the + button.

To add a test to a section, begin typing the name of the test in the Add Test box. It will present a list of matching tests. Select one to add to the list.

Once added to a section, tests and headers can be moved by dragging and dropping.

To create additional columns, drag a header or test into the right-hand column (the one without a header). To remove a column or row, click the – button.

Note – when deleting a column or row, all tests/headers in the column/row will also be removed.

To add a new section, click the Add Section button and update the section name. To remove a section, click the Delete Section button.

Note – it is not possible to delete the first section as an order list must contain at least one section.

To modify how tests and headers are displayed within a section, click Sort Horizontally / Sort Vertically or use the arrow buttons.

Click Save Favourite Order List to save.

The above configuration will appear like this on the ordering screen:

To modify an order list, expand the “Edit Personal Favourite Order List” panel on the “My Order Lists” screen. Select a list to modify and click Save Favourite Order List to save or Delete Favourite Order List to delete.

Note – tests added to lists can belong to multiple diagnostic departments.

Note – personal favourite test lists can also be created by clicking the button in the order basket.

Patient Management (Favourite Patients)

The favourite patients list allows quick access to the results of patients on a pre-defined list displayed below the Actions menu.

To maintain your favourite patients list, select Configuration from the Main Menu, then select Patient Management from the Actions menu, followed by My Patients.

It is also possible to add a patient to your favourite patients list, search for the patient, open the patient record, and click the Add to My Patients button at the top of the screen. To remove the patient, click the same button which will be labelled Delete from My Patients for existing favourite patients.

Change Password

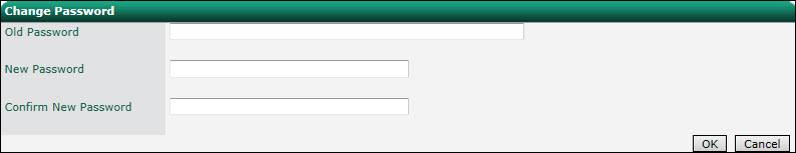

To change your password, select Configuration from the Main Menu, then Change Password from the Action menu.

Enter your old password and enter a new password in the two new password boxes. Click OK to save.

Note – you will be warned if your password does not meet the configured password policy.

Printer Settings

Warning – Please do not modify settings unless absolutely necessary and you are confident in what you are doing.

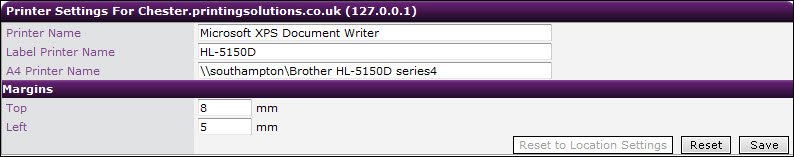

Occasionally, the location print settings set by a system administrator do not suit all the computers at particular location. The Local Machine Printer Management page allows a user to make minor changes to the print settings for an individual computer. To access the screen, select Configuration from the Main Menu, and select Print Settings from the Action menu, then select the By Machine sub-menu option.

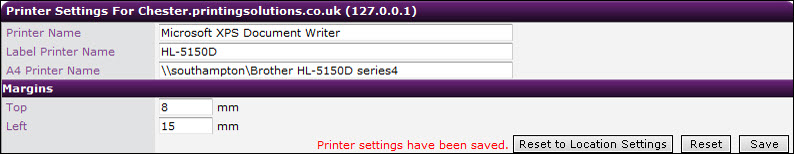

By default, the screen will be populated with the location settings. The ‘Printer Name’ field can be changed so the request/appointment forms can be printed to a different printer. The ‘Label Printer Name’ field can be changed so the labels can be printed to a different label printer. The A4 Printer can be changed so requests printed to A4 paper can be sent to another printer. The two margin fields change the positioning of the printed request form. These allow for fine tuning the position of the printout so the request lines up correctly with the pre-cut labels. Changing ‘Top’ from 5 to 7 will move the printout 2mm down. Changing ‘Left’ from 4 to 6 will move the printout 2mm to the right. To save the settings click Save.

Changes are computer specific and are not related to a particular user. Any user who uses the machine from now on will inherit these settings.

If you make changes, but do not wish to save them click Reset. No changes will be saved.

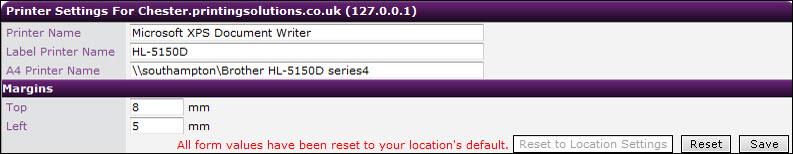

To revert a computer back to using the location settings click Reset to Location Settings. This will remove any custom settings for the machine.

News

System administrators can add news items to inform users of important information regarding dartOCM. When new news items are available an icon will be shown next to the news link which is cleared once the news item has been viewed.

Click News in the Main Menu to access the news page to view any news items.

Critical information i.e. A server reboot, will still be posted to users using the red message bar at the top of the site.

Links

Links to useful websites can be added by administrators for user’s information.

Click Links in the Main Menu to access the links page to view all available links.

Clicking on the link heading i.e. “Ideagen OCM User Guide” will open the web page in a new window. Links can also be accessed under the LINKS menu item that is displayed.
